ForgeDB

ForgeDB is a lightweight relational database engine implemented in Java for learning database internals.

It supports a practical subset of SQL, stores fixed-length records in 4 KB disk pages, keeps a small LRU buffer pool, persists schema metadata, and implements a B+ tree primary-key index.

Why ForgeDB?

Most database projects rely on an existing database through JDBC. ForgeDB goes one layer deeper by implementing the core components responsible for storing, locating, updating, and deleting records directly.

The goal is to understand the systems behind a relational database rather than only interacting with one.

Features

• Create, drop, list, and select databases
• Create, drop, and list tables
• INT, FLOAT, and fixed-width CHAR(N) columns
• One optional primary key per table
• Primary-key uniqueness checks
• INSERT
• SELECT * with optional WHERE
• DELETE with optional WHERE
• UPDATE ... SET ... WHERE ...
• Comparison operators: =, <>, <, >, <=, >=
• Multiple WHERE conditions joined with AND
• One B+ tree index per table, created on the primary key
• Indexed equality lookups
• 4 KB binary record pages
• 12-byte page header: previous page, next page, record count
• Reuse of empty pages after deletes
• LRU buffer pool with dirty-page flushing
• Persistent catalog metadata
• Persistent .records and .index files
• EXEC file.sql
• Interactive command-line shell
• Smoke, storage/index stress, restart-persistence, and deep B+ tree split tests

Requirements

• JDK 17 or newer
• No third-party Java libraries are required

Build

The easiest build does not require Maven:

./scripts/build.sh

That creates:

build/forgedb.jar

Run it with:

./scripts/run.sh

or:

java -jar build/forgedb.jar

A pom.xml is also included, so on a machine with Maven you can use:

mvn package
java -jar target/forgedb-1.0.0.jar

Run the tests

./scripts/test.sh

The test script runs:

1. A deep B+ tree test with 20,000 keys and a very small tree order to force internal splits.
2. An end-to-end SQL smoke test.
3. A 1,000-row storage/index stress test that crosses multiple disk pages, deletes rows, reuses pages, updates a primary key, rebuilds the index, and verifies persistence after restart.

Quick demo

Start ForgeDB:

$ ./scripts/run.sh
ForgeDB 1.0.0 — type HELP; for commands.
forgedb>

Then try:

CREATE DATABASE college;
USE college;

CREATE TABLE students (
    id INT,
    gpa FLOAT,
    name CHAR(32),
    PRIMARY KEY (id)
);

INSERT INTO students VALUES (1, 3.70, 'Alice');
INSERT INTO students VALUES (2, 3.90, 'Bob');
INSERT INTO students VALUES (3, 3.20, 'Carol');

CREATE INDEX students_pk ON students (id);

SELECT * FROM students WHERE id = 2;
UPDATE students SET gpa = 3.95 WHERE id = 3;
DELETE FROM students WHERE id = 1;
SELECT * FROM students WHERE gpa >= 3.5;

You can also run the included script from the ForgeDB shell:

EXEC examples/demo.sql;

Architecture

                         +-------------------+
                         |   ForgeDB Shell   |
                         +---------+---------+
                                   |
                                   v
                         +-------------------+
                         |    SQL Parser     |
                         +---------+---------+
                                   |
                                   v
                         +-------------------+
                         |  ForgeDbEngine    |
                         +----+---------+----+
                              |         |
                +-------------+         +-------------+
                v                                     v
       +----------------+                     +----------------+
       | Record Manager |                     | Catalog Manager|
       +-------+--------+                     +----------------+
               |
        +------+-------+
        |              |
        v              v
+---------------+  +----------------+
| Index Manager |  |  Buffer Pool   |
+-------+-------+  +--------+-------+
        |                   |
        v                   v
+---------------+    +--------------+
|    B+ Tree    |    | 4 KB Pages   |
+---------------+    +------+-------+
                            |
                            v
                    +---------------+
                    | .records files|
                    +---------------+

SQL parser

SqlParser recognizes ForgeDB's SQL subset and returns small immutable statement objects. It is case-insensitive for SQL keywords and keeps quoted values intact.

Catalog manager

The catalog stores databases, tables, columns, primary-key information, page-chain metadata, and index definitions. It is persisted to catalog.ser.

Record manager

Rows are encoded according to a table's schema and stored as fixed-length binary records. Each table owns a .records file made of 4096-byte pages.

Buffer pool

BufferPool keeps recently used pages in memory. A Java LinkedHashMap in access-order mode supplies the LRU policy. Dirty pages are flushed when evicted or when the engine flushes/closes.

B+ tree index

BPlusTree implements leaf and internal nodes, sorted leaf values, linked leaves, leaf splitting, internal splitting, and root growth. Equality predicates on an indexed primary-key column use the B+ tree instead of scanning every row.

ForgeDB intentionally rebuilds an index after deletes or primary-key-changing updates. This is simpler and easier to reason about for an educational database while keeping the important B+ tree insertion/search algorithms real.

On-disk layout

By default data is stored under:

~/ForgeDBData/

Example:

ForgeDBData/
├── catalog.ser
└── college/
    ├── students.records
    └── students_pk.index

A record page is exactly 4096 bytes:

byte 0  - 3    previous page number
byte 4  - 7    next page number
byte 8  - 11   number of records in this page
byte 12 - ...  fixed-length row data

-1 means no previous/next page.

Current scope

ForgeDB is intentionally small. It does not implement:

• joins
• transactions / rollback
• concurrent clients or locking
• foreign keys
• authentication/users
• views
• OR predicates
• arbitrary column projection (SELECT name, gpa ...)
• query planning/cost optimization
• variable-length records
• crash recovery / WAL

Those are good future extensions, but they are not required to understand the core storage/index path.

Project structure

src/main/java/io/forgedb/
├── ForgeDB.java
├── catalog/
│   ├── CatalogManager.java
│   ├── Column.java
│   ├── DatabaseSchema.java
│   ├── DataType.java
│   ├── IndexDefinition.java
│   └── TableSchema.java
├── cli/
│   └── ForgeDbShell.java
├── engine/
│   └── ForgeDbEngine.java
├── exception/
│   └── ForgeDbException.java
├── index/
│   ├── BPlusTree.java
│   └── IndexManager.java
├── sql/
│   ├── Condition.java
│   ├── Operator.java
│   ├── SqlParser.java
│   ├── Statement.java
│   └── Statements.java
└── storage/
    ├── BufferPool.java
    ├── DbKey.java
    ├── Page.java
    ├── RecordLocation.java
    ├── RecordManager.java
    └── RowCodec.java

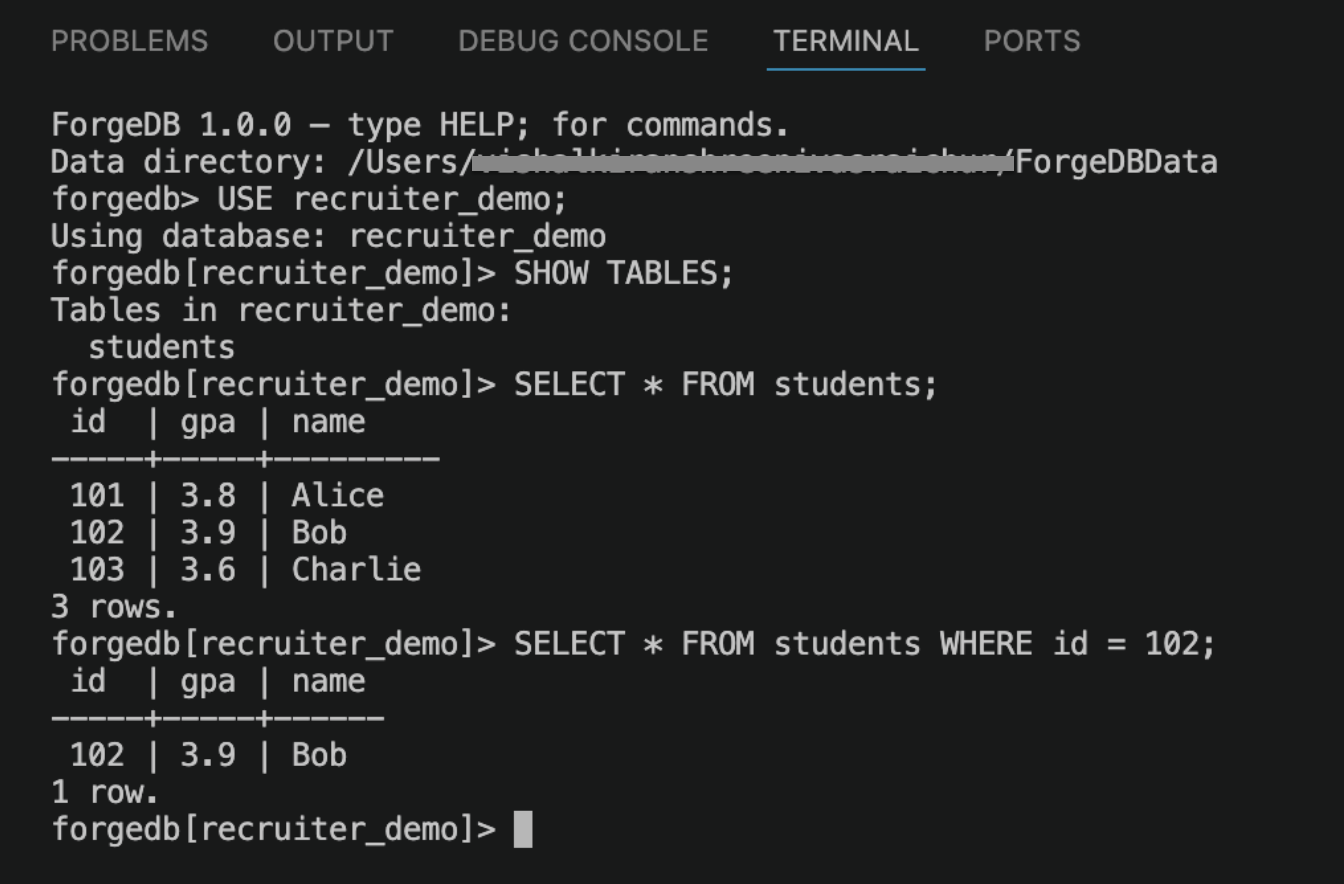

Demo

License

ForgeDB is distributed under the GPL-3.0 license.

See LICENSE and NOTICE.md for licensing and attribution information.
