Mini Workflow Orchestration System

Production-grade mini workflow orchestration built with:

• Python orchestrator (DAG scheduling, retry policy, persistence, logging)
• Go worker engine (parallel processing with goroutines)
• ZeroMQ transport (PUSH/PULL)
• SQLite task state store
• PySide6 desktop UI for live monitoring

Screenshots

Desktop UI Overview

Orchestrator Log Output

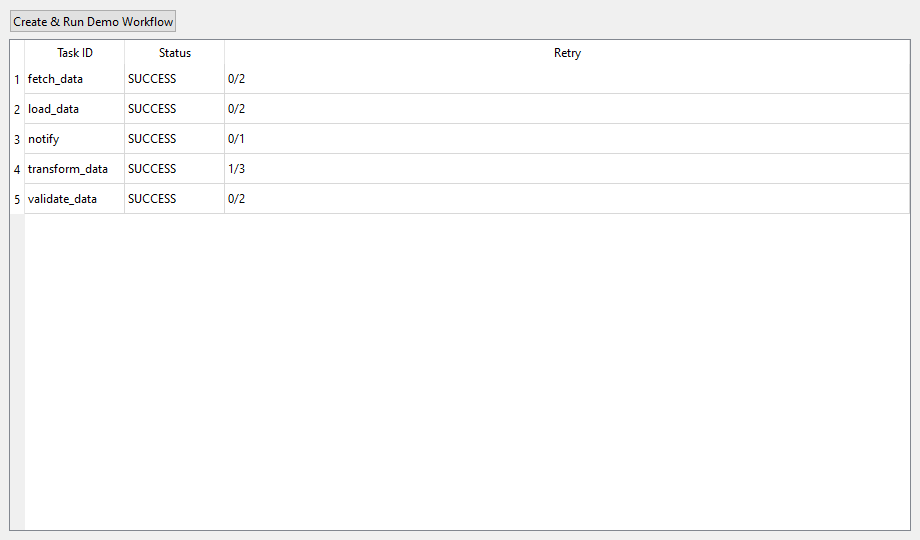

Retry View in UI

Architecture

1. Python Orchestrator

workflow/services/orchestrator.py

• Maintains in-memory DAG + task state.
• Dispatches ready tasks to workers using ZeroMQ (tcp://127.0.0.1:5555).
• Receives worker results from ZeroMQ (tcp://*:5556).
• Implements retry logic (retry < max_retry) to simulate at-least-once processing.
• Propagates permanent failures to blocked downstream tasks so workflows always terminate.
• Synchronizes in-memory state with SQLite on every task change.

2. DAG Core

workflow/core/dag.py

• Directed acyclic graph with cycle detection on dependency insertion.
• Deterministic topological sort.
• Computes ready nodes from completed + in-progress sets.

3. Worker Engine (Go)

go_worker/main.go, go_worker/engine.go

• Pulls tasks from port 5555 and pushes results to port 5556.
• Uses goroutine pool (-workers N) for concurrent execution.
• Retries outbound result-socket connection on startup to avoid strict startup ordering.
• Simulates failures with configurable payload (fail_probability, force_fail).

4. Persistence Layer

workflow/db/repository.py

• SQLite schema for tasks and dependencies.
• Save/load whole workflow and incremental task upserts.
• Recovery path restores persisted workflow and resumes orchestration.

5. Desktop UI

workflow/ui/main_window.py

• Read-only table with task_id, status, retry/max_retry.
• "Create & Run Demo Workflow" button.
• Auto-refresh every second via QTimer.
• UI remains responsive because orchestration runs in a background thread.

6. Logging

workflow/logging_config.py

• Centralized logging with console + rotating file handler.
• Logs workflow lifecycle and task events (dispatch/success/retry/failure).

Communication Contract

Task Message (Python -> Go)

{
  "id": "transform_data",
  "retry": 1,
  "max_retry": 3,
  "payload": {
    "fail_probability": 0.35
  }
}

Result Message (Go -> Python)

{
  "id": "transform_data",
  "status": "SUCCESS",
  "retry": 1,
  "worker": "worker-2"
}

Project Structure

mini workflow/
  workflow/
    core/
      dag.py
      models.py
    db/
      repository.py
    services/
      orchestrator.py
      workflow_builder.py
      zmq_gateway.py
    ui/
      main_window.py
    logging_config.py
    main.py
  go_worker/
    engine.go
    engine_test.go
    go.mod
    main.go
  tests/
    test_dag.py
    test_retry.py
  requirements.txt
  README.md

Run Instructions

1. Start Go workers

cd go_worker
go run . -workers 4

2. Start Python app (new terminal)

python -m venv .venv
# Windows PowerShell
.venv\Scripts\Activate.ps1
pip install -r requirements.txt
python -m workflow.main

You can start either side first. The Go worker retries connecting to the Python result endpoint.

Run Tests

Python tests

$env:PYTEST_DISABLE_PLUGIN_AUTOLOAD='1'; pytest -q

Go tests

cd go_worker
go test ./...

CI/CD and Releases

• CI workflow runs automatically on every push and pull request:
  • Python dependency install + pytest
  • Go worker go test ./...
• Release workflow runs automatically when you push a version tag like v1.0.0.
• For each release tag, GitHub Release assets include:
  • Cross-platform worker binaries (linux, windows, darwin, amd64/arm64)
  • ZIP packages containing Python app + matching worker binary
  • A source ZIP package

Create a release

git tag v1.0.0
git push origin v1.0.0

After the workflow completes, check: https://github.com/mongo-driver/mini-workflow/releases

Architecture Decisions

• PUSH/PULL over ZeroMQ: simple load balancing across multiple Go workers with no custom broker.
• Single writer sockets in Go: avoids ZeroMQ socket thread-safety issues while still allowing worker pool concurrency.
• SQLite for local durability: lightweight, zero-admin persistence suitable for desktop workflow orchestration.
• Background orchestrator loop: keeps UI responsive and allows continuous scheduling/result handling.
• Retry as at-least-once simulation: failed tasks are re-dispatched until max_retry.
• Fail-fast DAG completion: downstream tasks blocked by permanently failed dependencies are explicitly marked FAILED.
